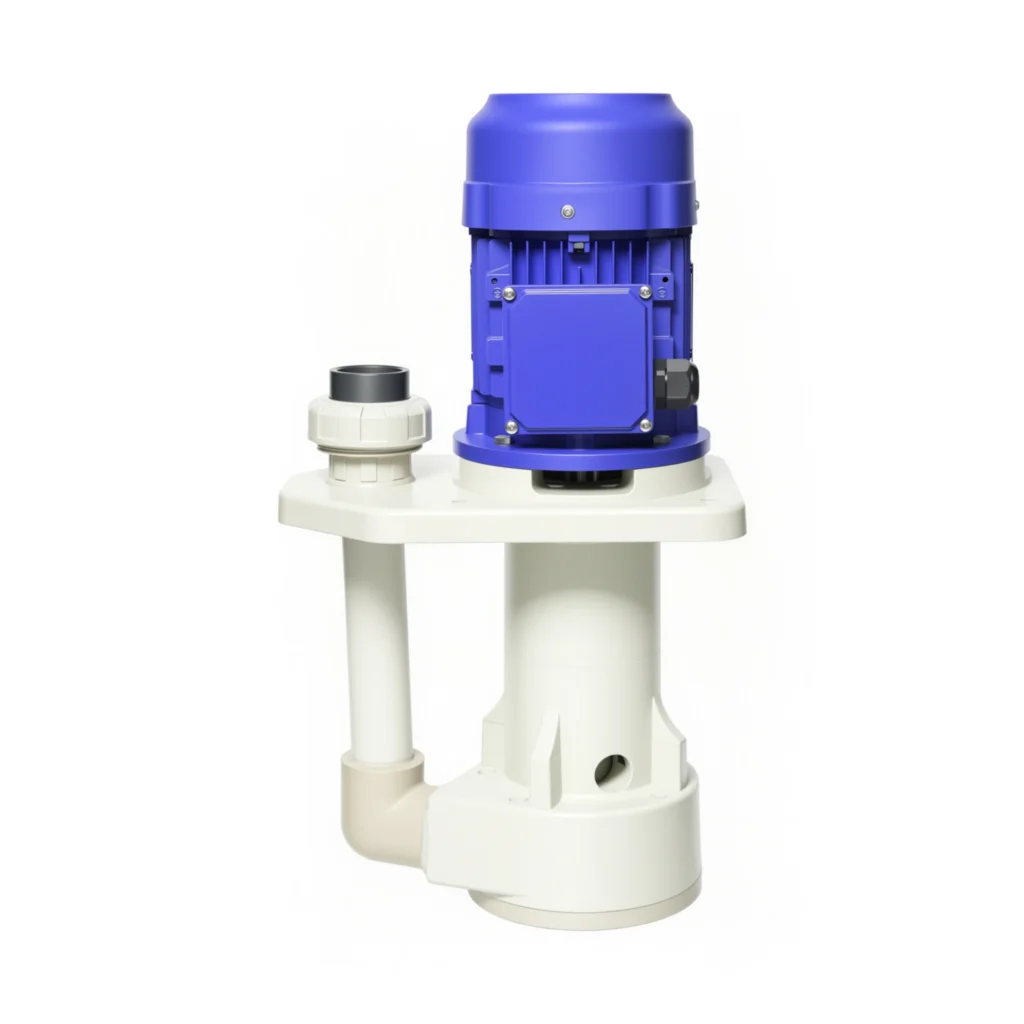

HWP series vertical pump
Key Advantages
Advantages of the HWP series vertical pumps:
- Manufactured via high-quality FRPP plastic injection molding.
- Allows dry running.
- Excellent resistance to acids and bases.
- Suitable for the transport of a wide range of corrosive chemical liquids.
HWP series vertical pump Description
HWP Series Vertical Pump is a high-performance vertical centrifugal pump specially designed for chemical liquid circulation, transfer, and filtration applications. Manufactured with FRPP plastic construction, this pump provides excellent chemical resistance and reliable operation in demanding industrial environments. The vertical structure allows easy tank installation, reducing installation space while providing stable fluid handling performance for various industrial processes.
Designed as a corrosion resistant vertical pump, HWP Series features acid and alkali resistant materials, dry-running capability, and an optimized flow channel design for high efficiency, low noise, and stable pressure performance. The motor is protected by an oil seal structure to reduce the risk of corrosive gas entering the motor bearings. SUS304 stainless steel shaft and titanium shaft options are available to improve concentricity, strength, and long-term durability.
As a reliable vertical chemical transfer pump, HWP Series is widely used in electroplating lines, PCB manufacturing, etching equipment, chemical circulation systems, cooling systems, wastewater treatment, and chemical filtration machines. It provides a safe and efficient pumping solution for handling acids, alkalis, and various industrial liquids.
HWP series vertical pump Description
Model Identification
HWP-40-SK-3-5-V-F
(1) Model No.: HWP
(2) Outlet Diameter: 40-1-1/2″, 50-2″
(3) Specific Gravity: SK-1.1, SP-1.4
(4) Power: 1-1HP, 2-2HP, 3-3HP, 5-5HP, 7.5-7.5HP, 10-10HP
(5) Frequency: 5: 50Hz, 6: 60Hz
(6) O-Ring Material: V-VITON, E-EPDM, N-NBR
(7) Pump Body Material: F-FRPP
Specifications
Model | Inlet/Outlet Dia. (mm) | Power (HP) | 50Hz (Curve / Total Head M / Max Flow L/min) | 60Hz (Curve / Total Head M / Max Flow L/min) | Weight (Kg) |
HWP-32SK-1 | 50 * 32 | 1 | b / 18 / 200 | B / 17 / 160 | 23 |
HWP-40SK-1 | 50 * 40 | 1 | b / 18 / 210 | B / 16.5 / 170 | 23 |
HWP-32SK-2 | 50 * 40 | 2 | c / 26 / 290 | C / 25 / 260 | 25 |
HWP-40SK-2 | 50 * 40 | 2 | n / 26 / 380 | N / 24 / 300 | 25 |
HWP-40SK-3 | 50 * 40 | 3 | d / 28 / 400 | D / 27 / 350 | 29 |
HWP-40SK-4 | 50 * 40 | 4 | y / 30 / 470 | Y / 29 / 450 | 32 |
HWP-50SK-5 | 50 * 50 | 5 | e / 32 / 560 | E / 30 / 520 | 52 |
HWP-50SK-7.5 | 50 * 50 | 7.5 | f / 44 / 640 | F / 38 / 620 | 70 |
HWP-50SK-10 | 50 * 50 | 10 | m / 46 / 700 | M / 43 / 690 | 75 |
HWP-32SP-1 | 50 * 32 | 1 | h / 19 / 180 | H / 16 / 150 | 23 |
HWP-40SP-1 | 50 * 40 | 1 | h / 17 / 190 | H / 16 / 160 | 23 |
HWP-40SP-2 | 50 * 32 | 2 | i / 26 / 260 | I / 23 / 240 | 25 |
HWP-40SP-3 | 50 * 40 | 3 | j / 28 / 330 | J / 25 / 320 | 29 |
HWP-40SP-4 | 50 * 40 | 4 | z / 30 / 460 | Z / 28 / 430 | 32 |
HWP-50SP-5 | 50 * 50 | 5 | k / 28.5 / 540 | K / 30 / 500 | 52 |
HWP-50SP-7.5 | 50 * 50 | 7.5 | l / 41 / 620 | L / 38 / 580 | 70 |
HWP-50SP-10 | 50 * 50 | 10 | m / 45 / 680 | M / 43 / 650 | 75 |
Applications
Electroplating
New Energy
Wastewater Treatment
