HKB Series Centrifugal Pump

Table of Contents

Key Advantages

Advantages of the HKB Series Centrifugal Pumps:

Powerful Self Priming Centrifugal Pump Design
Heavy-Duty FRPP & PVDF Materials
3-Inch Heavy-Duty Capacity
Smart Backflow Prevention Design

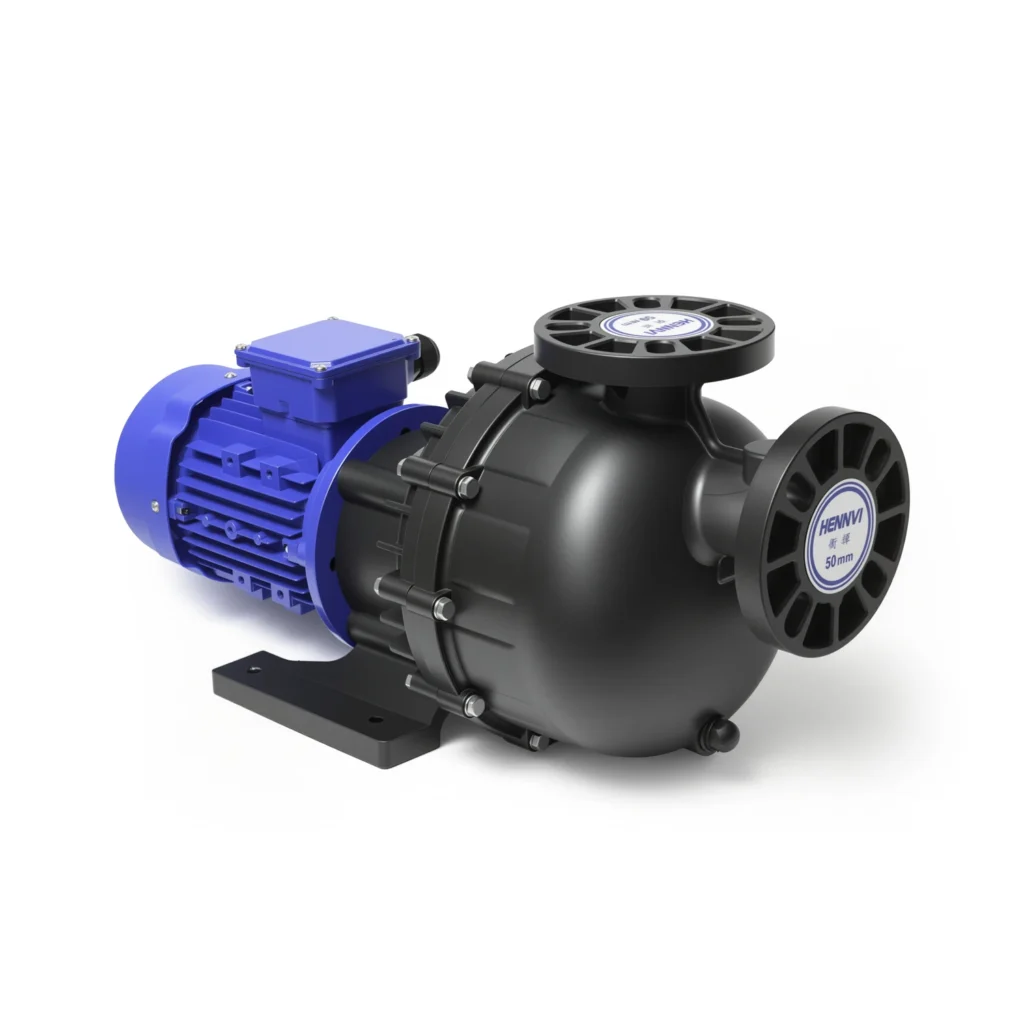

HKB Series Centrifugal Pump Description

Hennvi’s HKB Series Centrifugal Pump is a high-performance, heavy-duty fluid handling solution engineered for demanding industrial environments. Built with a robust, one-piece injection-molded housing made of premium FRPP or PVDF, this advanced industrial centrifugal pumps device delivers superior wear resistance, seamless structural efficiency, and exceptional durability against aggressive liquids.

Featuring a powerful self priming centrifugal pump design, it achieves an impressive suction lift of up to 20 feet. It is equipped with an integrated high-efficiency impeller to maximize flow rates while extending service life. A specialized flap check valve prevents fluid backflow upon shutdown, effectively eliminating dry-running risks. Additionally, shaft seal materials can be fully customized to match specific chemical environments.

As a top-tier chemical centrifugal pump, it is highly recommended for continuous acid and alkali fluid transfer. It is perfectly suited for automated electroplating lines, PCB wet processing, metal surface etching, and heavy-duty industrial waste liquid management.

HKB Series Centrifugal Pump Technical Specifications

Model Identification

HKB-F-40-01-2-N-B-L-S-C-H-5

1.MODEL: HKB

2.MATERIAL: F-FRPP, C-CPVC, P-PVDF

3.IN-OUTLET: 40;1-1/2 +-,50:2+-,70:3 +-

4.POWER: 01-1HP, 02-2HP, 03-3HP, 07-7.5HP, 10-10HP

5.POLES NUMBER: 2-2P, 4-4P

6.RUBBER: N-NBR, E-EPDM, V-VITON

7.CHECK VALVE: B-No tongue , A-With tongue

8.L-Low lift , H-High lift

9.FIXED COLLAR :C-CERAMIC, S-SIC

10.ROTATING: C-CERAMIC, S-SIC

11.SPRING: SUS316

12.FREQUENCY: 5:50HZ, 6:60HZ

Performance Specifications

Test fluid: water, specific gravity 1.0

MODEL	CURVE	IN (mm)	OUT (mm)	50HZ		60HZ		POWER (KW)	WEIGHT (kg)
				MAX HEAD (m)	MAX FLOW (L/min)	MAX HEAD (m)	MAX FLOW (L/min)
HKB-40011L	B	40	40	7	185	7.5	200	0.37	27
HKB-40012L	A	40	40	13	240	16	240	0.75	27
HKB-40013L	B	40	40	7	185	7.5	200	0.37	28
SHKB-40014L	C	40	40	7	210	9	270	0.75	28
HKB-40022L	D	40	40	17	280	18	300	1.5	30
HKB-40022H	E	40	40	19	300	22	330	1.5	30
HKB-50032L	F	50	50	17	410	21	430	2.2	38
HKB-50032H	G	50	50	23	390	29	480	2.2	42
HKB-50052H	H	50	50	26	450	34	600	3.75	55
HKB-70072H	I	75	75	27	800	35	860	5.5	56

Applications

Electroplating

New Energy

Wastewater Treatment
