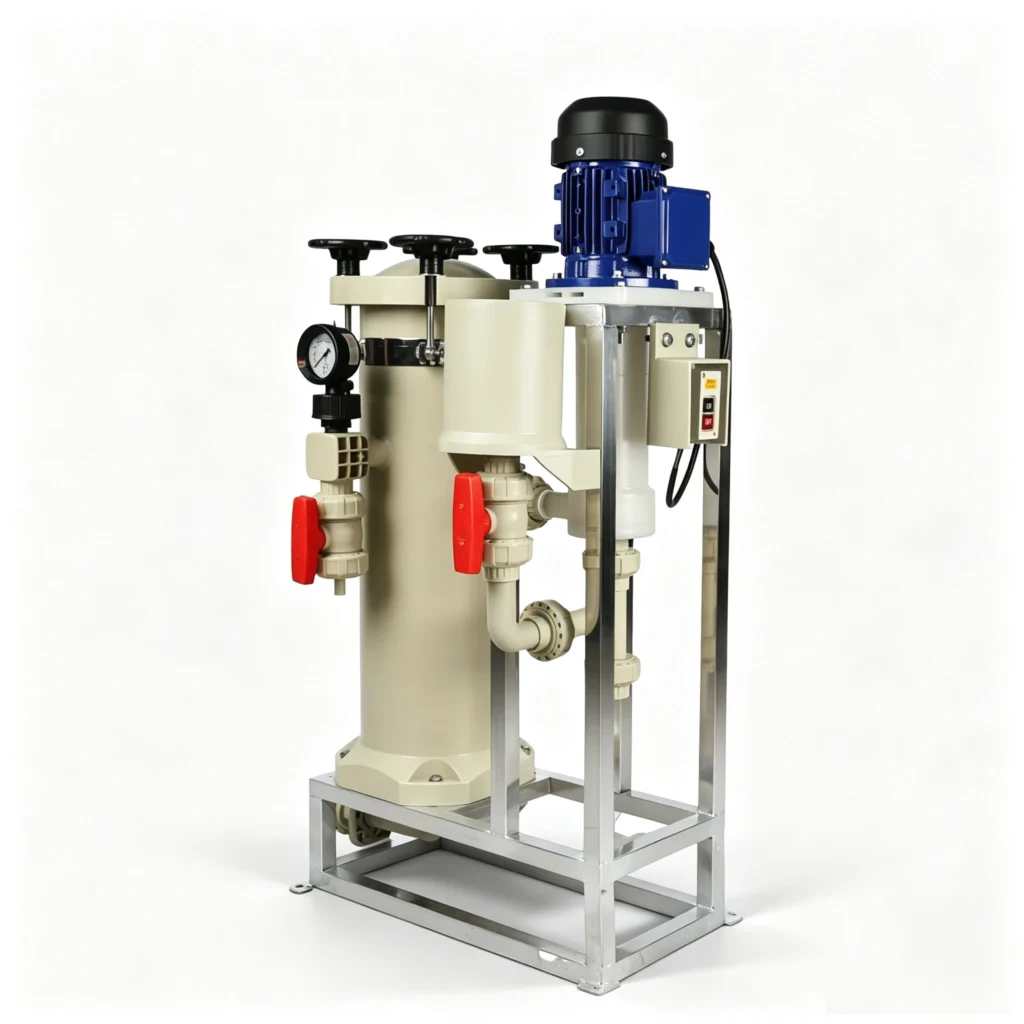

HKD Series Electroplating Chemical Filter System
Product Description
The Hennvi HKD Series electroplating chemical filter is an advanced, high-efficiency filtration solution featuring a heavy-duty, corrosion-resistant housing. The entire filter chamber is engineered from pure PP injection molded materials, ensuring a seamless, robust structure that withstands high pressures and harsh industrial environments.
- Superior Dry-Running Protection: At its core is a specialized chemical pump with exceptional dry-running capabilities, completely eliminating the risk of equipment damage caused by accidental dry operation.
- Outstanding Corrosion & Temperature Resistance: Built from premium modified polypropylene, this chemical filter provides elite resistance against strong acids, alkalis, and elevated temperatures without structural deformation.
- 100% Leak-Free & Easy Maintenance: Its welding-free body ensures zero leakage, while the modular internal design allows for rapid filter cartridge replacement.
This versatile chemical filter system is highly recommended for continuous 24/7 fluid circulation and purification. It is perfectly suited for automated electroplating lines, heavy-duty acid pickling tank circulation, aggressive PCB etching solution purification, and other demanding chemical processing applications.
Product Specifications
Model Identification
HKD-2006-1-P-F-N-C
Model:HKD
Core number:2004-20″ ×4PCS, 2006-20″ ×6PCS, 2008-20″ ×8PCS, 2012-20″ ×12PCS, 2018-20″ ×18PCS
Pump power:1-1HP, 2-2HP, 3-3HP
Material of filter body: P-FRPP, K-PVDF
In-outlet type:U-Union type, H-Socket type, F-Flange type
Seal rubber: N-NBR, V-VITON, E-EPDM
Filter core: C-Filter press plate type, B-Filter lock cap type
Specifications
Filter Model | Inlet × Outlet (mm) | Stage | Power HP | Total Head (m) | Total Flow (L/min) |
HKD-1004-1/3HP | 25×25 | 2 | 1/3 | 3 | 40 |
HKD-2004-1/2HP | 25×25 | 2 | 1/2 | 8 | 80 |
HKD-2006-1HP | 40×40 | 2 | 1 | 8 | 160 |
HKD-2008-2HP | 40×40 | 2 | 2 | 10 | 180 |
HKD-2012-2HP | 40×40 | 2 | 2 | 11 | 220 |
HKD-2018-3HP | 50×50 | 2 | 3 | 11 | 330 |
Applications
Electroplating
New Energy
Wastewater Treatment
Why Choose HENNVI ?
- Professional Fluid Handling Manufacturer
Focused on pumps and filtration equipment with years of manufacturing expertise.
- Strict Quality Control System
Every product is carefully inspected to ensure reliable performance and consistent quality.
- Advanced Manufacturing Capability
Advanced equipment and precision manufacturing guarantee durable and high-performance products.
- Customized OEM & ODM Solutions
Flexible customization based on your specifications, materials and application requirements.
- Professional Technical Support
Providing expert guidance for product selection and industrial application solutions.
- Global Industrial Experience
Serving customers in chemical, water treatment and manufacturing industries worldwide.
