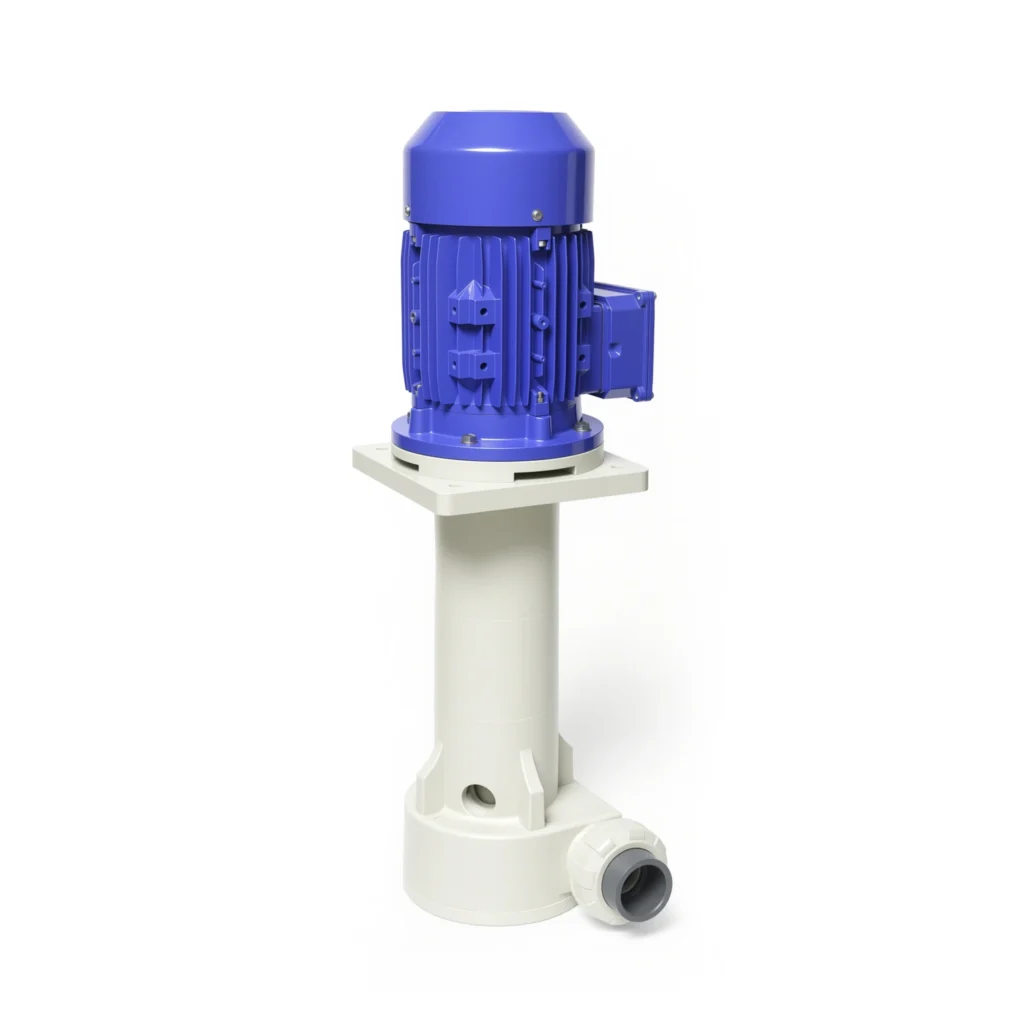

HUP series vertical pump
Key Advantages
Advantages of the HUP series vertical pumps:
- Can run dry safely without causing any damage or failure.
- Molded PP or PVDF housing resists strong acid and alkali.
Direct SUS304 motor shaft ensures perfect concentricity and stability. - Perfect for in-tank design and seamless filtration system integration.
HUP series vertical pump Description
The HUP series vertical pump is an advanced, high-performance fluid handling device designed for modern industrial manufacturing environments. Built with high-strength PP or PVDF engineering plastics through precision injection molding, this seamless equipment features an integrated SUS304 motor shaft that ensures perfect concentricity and long-term running stability. The entire pump unit adopts a compact footprint with an epoxy-coated IP54 motor, providing heavy-duty structural defense against hash production atmospheres.
This innovative vertical chemical pump features a unique seal-less, cantilever architecture that allows absolute 24/7 dry-running operation without causing any equipment damage. It includes a universal outlet joint connection supporting flexible PP or PVC pipe coupling for effortless installation. Furthermore, its specialized structure functions with ultra-low noise and minimal vibration.
As a top-tier vertical acid pump pvdf solution, it delivers exceptional reliability in continuous corrosive fluid transfer. It excels in automated PCB etching machine spraying, continuous electroplating chemical loop circulation, electrocoating, and industrial wastewater treatment.
HUP series vertical pump Technical Specifications
Model Identification
HUP-40-SK-1-5-V-F-4
Model: HWP
Outlet: 20:3/4″, 25:1″, 40:1-1/2″, 50:2″
Specific gravity: SK-1.1, SP-1.4
Power: 1/8:1/8HP, 1/6:1/6HP, 1/4:1/4HP, 1/3:1/3HP, 1/2:1/2HP, 1-1HP, 2-2HP, 3-3HP
Frequency: 5:50HZ,6:60HZ
Rubber: N-NBR, E-EPDM, V-VITON
Pump Material: F-FRPP, P-PVDF
Axis Material: 4-SUS304, 6-SUS316, T-TI
Performance Specifications
Model | Inlet/Outlet Dia. (mm) | Power (HP) | 50Hz (Curve / Total Head M / Max Flow L/min) | 60Hz (Curve / Total Head M / Max Flow L/min) | Weight (Kg) |
HUP-32SK-1 | 50 * 32 | 1 | b / 18 / 200 | B / 17 / 160 | 23 |
HUP-40SK-1 | 50 * 40 | 1 | b / 18 / 210 | B / 16.5 / 170 | 23 |
HUP-32SK-2 | 50 * 40 | 2 | c / 26 / 290 | C / 25 / 260 | 25 |
HUP-40SK-2 | 50 * 40 | 2 | n / 26 / 380 | N / 24 / 300 | 25 |
HUP-40SK-3 | 50 * 40 | 3 | d / 28 / 400 | D / 27 / 350 | 29 |
HUP-40SK-4 | 50 * 40 | 4 | y / 30 / 470 | Y / 29 / 450 | 32 |
HUP-50SK-5 | 50 * 50 | 5 | e / 32 / 560 | E / 30 / 520 | 52 |
HUP-50SK-7.5 | 50 * 50 | 7.5 | f / 44 / 640 | F / 38 / 620 | 70 |
HUP-50SK-10 | 50 * 50 | 10 | m / 46 / 700 | M / 43 / 690 | 75 |
HUP-32SP-1 | 50 * 32 | 1 | h / 19 / 180 | H / 16 / 150 | 23 |
HUP-40SP-1 | 50 * 40 | 1 | h / 17 / 190 | H / 16 / 160 | 23 |
HUP-40SP-2 | 50 * 32 | 2 | i / 26 / 260 | I / 23 / 240 | 25 |
HUP-40SP-3 | 50 * 40 | 3 | j / 28 / 330 | J / 25 / 320 | 29 |
HUP-40SP-4 | 50 * 40 | 4 | z / 30 / 460 | Z / 28 / 430 | 32 |
HUP-50SP-5 | 50 * 50 | 5 | k / 28.5 / 540 | K / 30 / 500 | 52 |
HUP-50SP-7.5 | 50 * 50 | 7.5 | l / 41 / 620 | L / 38 / 580 | 70 |
HUP-50SP-10 | 50 * 50 | 10 | m / 45 / 680 | M / 43 / 650 | 75 |
Applications
Electroplating
New Energy
Wastewater Treatment
